Product Description

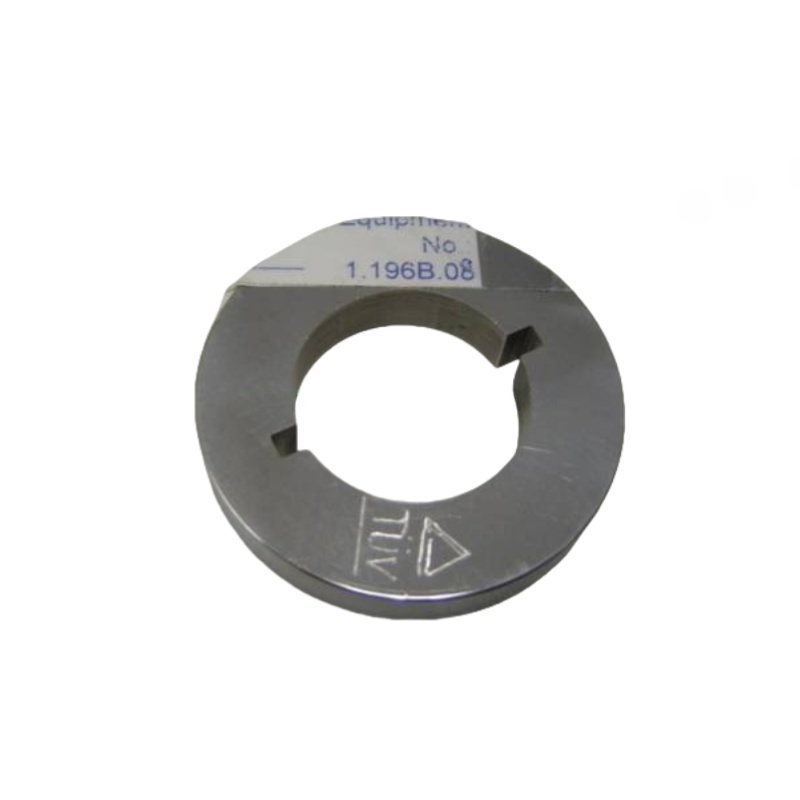

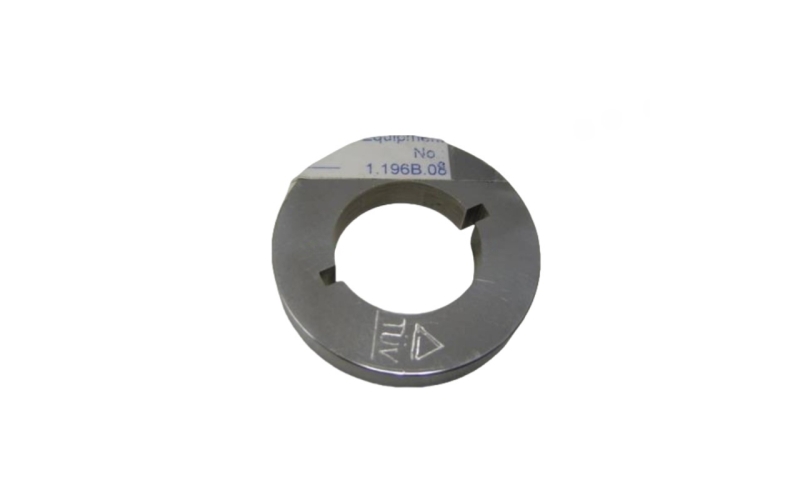

The IEC60061-3 B22d 7006-4A-2 is a professional-grade measurement instrument designed for B22d bayonet cap lamp bases, ensuring strict compliance with international IEC 60061-3 standards. This precision gauge verifies all critical dimensions of the 22mm bayonet connector system, which is widely used in household lighting, commercial fixtures, and industrial applications throughout Europe, Asia, and Commonwealth countries.
Key Features & Benefits
✔ Standard Compliance: Fully meets IEC 60061-3 specifications for B22d lamp bases
✔ Precision Verification: Measures 22mm pin diameter and bayonet slot alignment with ±0.01mm accuracy
✔ Dual-Pin Testing: Simultaneously checks both bayonet pins for proper engagement angle (15° standard)
✔ Durable Construction: Hardened chromium steel with wear-resistant coating for long-term reliability
✔ Quality Control Essential: Mandatory tool for bulb manufacturers, certification labs, and import/export inspections
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | IEC 60061-3 |
| Base Type | B22d Bayonet Cap |
| Pin Diameter | 22mm ±0.01mm |
| Slot Angle | 15° ±0.5° |
| Material | Chromium Alloy Steel |
| Compliance | CE / RoHS / IEC Certified |
