Testing Device For Neutral Electrodes

Testing Device For Neutral Electrodes,Neutral Electrode Temperature Performance Tester

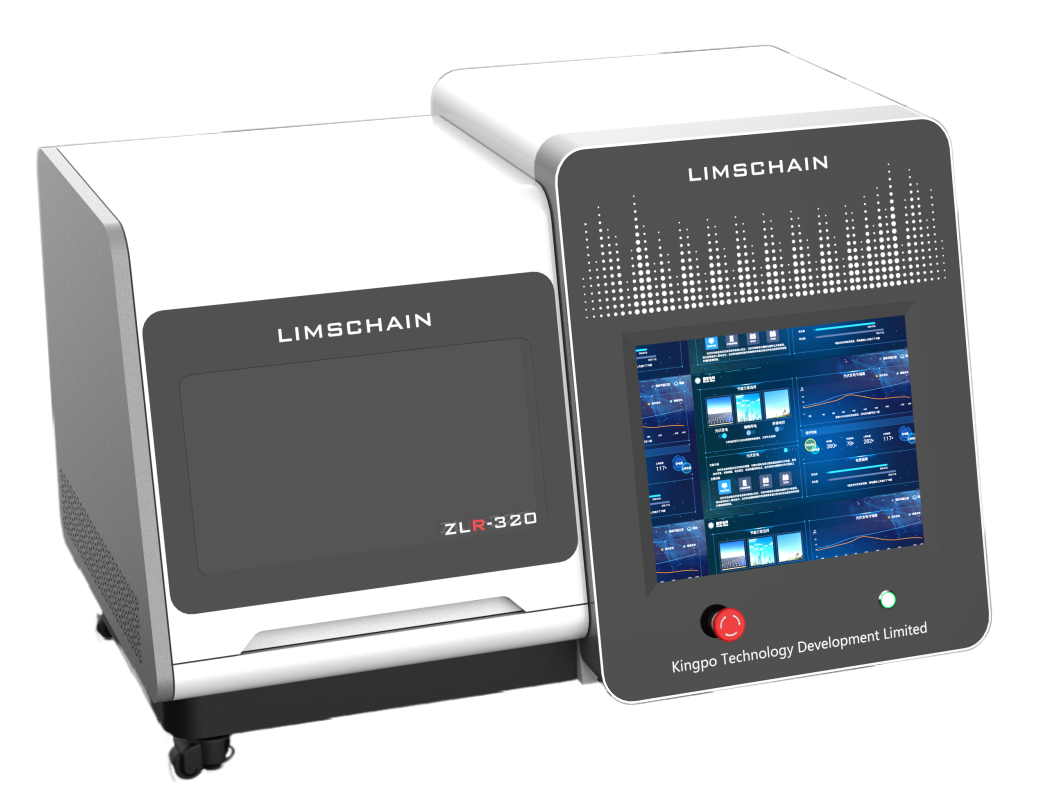

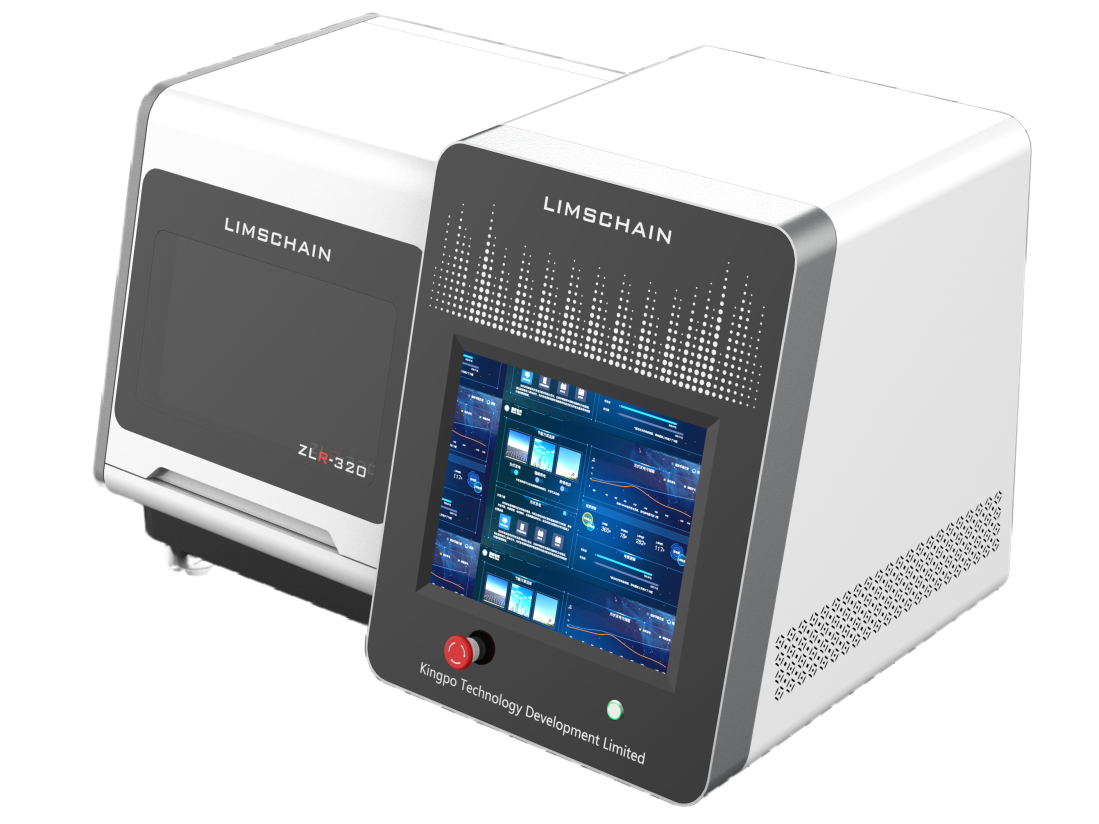

ZLR-320 Neutral Electrode Temperature Rise Tester

This device is designed according to the standard IEC60601-2-2:2017 and the Chinese national standard GB9706.202-2021 regarding the temperature rise characteristics requirements and testing methods for neutral electrodes (NE) in high-frequency surgical equipment. It can fully meet the testing requirements of standard 201.15.101.5 "Thermal performance of neutral electrodes".

According to the relevant requirements and corresponding test results for replacing volunteer testing in the standard, this testing device is designed to replace volunteer testing experiments, and the relevant test results can be considered consistent with real person testing.

(1) Test parameters

Temperature measurement board size (gold-plated testing area)

12 cm x 22 cm

Spatial resolution of temperature measurement board

1 cm²

Number of temperature sensor arrays

16 x26

The size of the temperature sensor array (standard requires temperature sensors to be deployed 2cm at each edge of the temperature measurement board)

16x26=416 sensor, (IEC 60601-2-2:+1cm)

Adjustable effective value of high-frequency current

(The neutral electrodes for adults/children and infants are respectively)

700mA/500mA/350mA

Test load time standard (optional)

60 s (10s.300s)

Tested skin adipose tissue thickness

20mm/15mm/10mm/5mm

Temperature measurement speed after high-frequency current load

Complete all temperature measurements within 1 second (IEC60601-2-2: Temperature testing is required to be completed within 15 seconds)

Relative temperature measurement accuracy of temperature measurement system

0.4 ℃ (IEC 60601-2-2 requires that the error of the temperature testing system be less than 0.5 ℃)

CQM simulation testing of contact impedance quality

2Ω.~ 100 Ω, (=100%) according to CQM system test results

measurement accuracy

±(3%+3 Ohm)

The measurable range of relative increase/decrease in CQM impedance, in ohms; Until the alarm zone is reached (impedance increases to 130%~140%)

00%…160% <100Ω

(IEC 60601-2-2:§201.8.4.101)

Environmental chamber temperature

RT+5°C

Operation interface

Chinese English interface

Interface

Provide API interfaces for LIMS integration

(2) Equipment electrical specifications

Overall dimensions (width x height x depth)

1040X640X640 mm

Weight of the entire machine (including the main unit, measuring table, and cables)

66 kg

Equipment power input:

220V AC,50 Hz

Rated power @ 700 mA high-frequency current (at maximum current)

0,5 A @220 V, AC

Other devices

Integrated computer embedded in the whole machine

Windows 10 operating system, monitor resolution

Usage environment

23±2℃. The initial temperature of the neutral electrode and the test surface should be 23 ℃± 2 ℃

Storage environment

0~50℃,10R. H.~90%R.H.

Professional Testing Device For Neutral Electrodes. IEC 60601-2-2 — medical electrical equipment — particular requirements for high frequency surgical equipment. Neutral electrode temperature-rise testing checks that the return electrode does not heat tissue beyond the permitted rise under continuous load. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.

What it measures

The quantities named in the applicable clause of IEC 60601-2-2
Worst-case supply and load conditions, selected from the front panel or automatically
Pass/fail against the limits entered by the operator, with the reading retained for the report

Specification

Standard	IEC 60601-2-2
Function	Professional Testing Device For Neutral Electrodes
Control	Programmable test sequences with stored results
Power supply	AC 220 V 50/60 Hz (other supplies on request)
Calibration	Calibration certificate supplied
Made by	Kingpo — built, tested and calibrated in-house

How a test run works

Configure the supply condition and the measuring device arrangement the clause requires.
Connect the equipment under test, including any applied part and earth reference.
Select or program the sequence: normal condition first, then the single-fault conditions.
Run, capture the readings and compare them with the allowable values in the standard.
Store or print the result set; the test report needs every condition, not just the pass.

Buying notes

Confirm three things before ordering: which edition of IEC 60601-2-2 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.

Frequently asked questions

Is the unit calibrated before despatch?

Yes, and we re-calibrate on request.

Can it be supplied for 110 V?

Yes — other supply voltages and plug types are available; tell us the market.

Do you provide the test procedure?

We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.

Related gauges and equipment

Other equipment in the same range:

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.

Parameters of the Professional Testing Device For Neutral Electrodes. Test conditions and limit values come from IEC 60601-2-2; the instrument is configured to run them and to record the readings.

Application	IEC 60601-2-2 test programme
Function	Professional Testing Device For Neutral Electrodes
Control	Programmable test sequence with stored results
Data output	Result storage and report export
Power supply	AC 220 V 50/60 Hz (other supply voltages on request)
Scope of supply	Instrument, test leads and calibration certificate
Calibration	Calibration certificate supplied; re-calibration available
Origin	Kingpo — machined, inspected and calibrated in-house

Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the clause numbers you test against and we will confirm the configuration.
