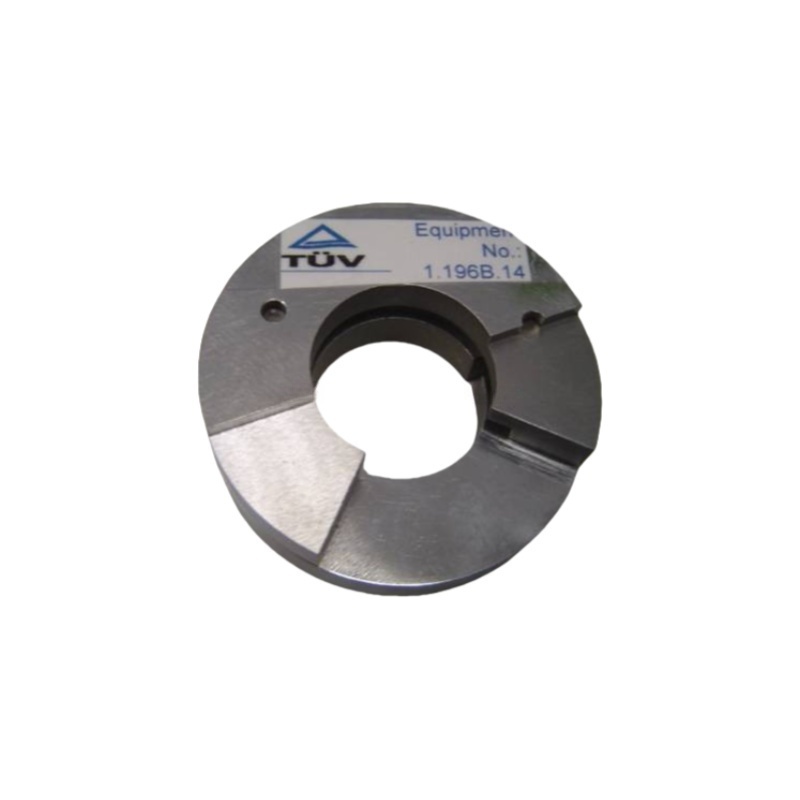

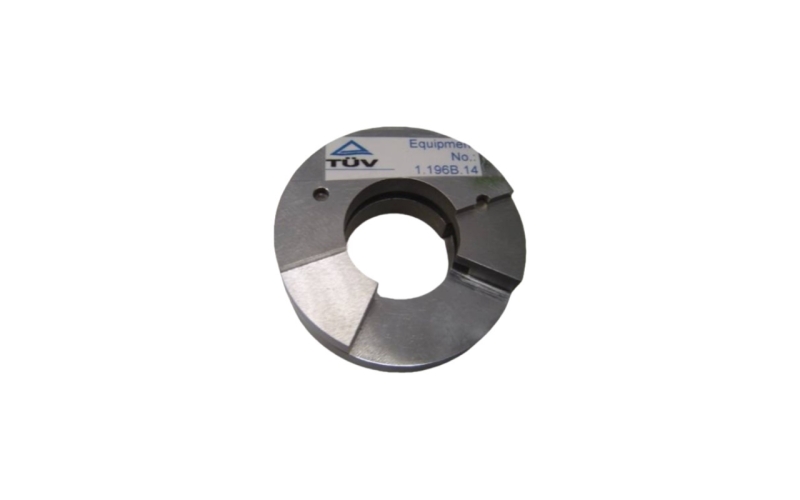

IEC60061-3 B22d 7006-10 Professional Bayonet Cap Lamp Gauge
Product Description
The IEC60061-3 B22d 7006-10 is a precision measurement gauge designed for B22d bayonet cap lamp bases, fully compliant with international IEC standards. This professional-grade instrument verifies critical dimensions of the 22mm bayonet connector system widely used in household lighting, commercial fixtures, and industrial applications across Europe, Asia, and Commonwealth countries.
Key Features & Benefits
✔ Standard Compliance: Meets IEC60061-3 specifications for B22d bases
✔ Precision Verification: Measures 22mm pin diameter and bayonet slot alignment with ±0.01mm accuracy
✔ Dual-Pin Testing: Simultaneously checks both bayonet pins for proper engagement angle (15° standard)
✔ Durable Construction: Hardened chromium steel with wear-resistant coating
✔ Quality Control Essential: Mandatory tool for bulb manufacturers, certification labs, and import/export inspections
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | IEC60061-3 |
| Base Type | B22d Bayonet Cap |
| Pin Diameter | 22mm ±0.01mm |
| Slot Angle | 15° ±0.5° |
| Material | Chromium Alloy Steel |
| Compliance | CE/RoHS/IEC |
