IEC 60601-1 ME Equipment Rough Handling Tester AC 220V 50/60HZ

Product Description

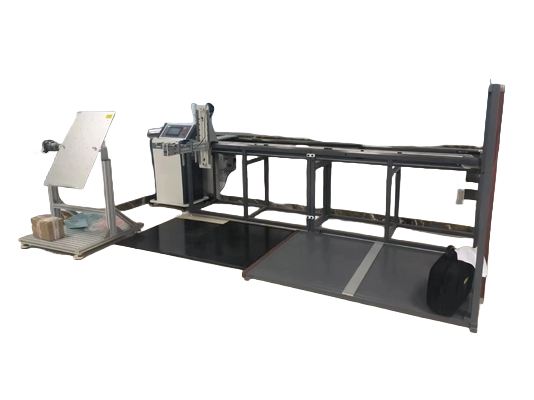

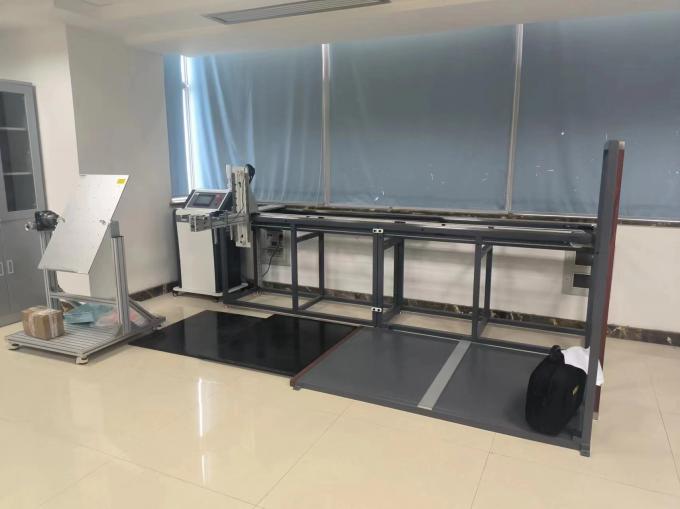

ME Equipment Rough Handling Tester

Comply with IEC60601-1,GB9706.1-2020 standard 9.4.2.4.2, 9.4.2.4.3, 15.3.5 chapter requirements

Technical parameters:
1. Power supply: AC 220V 50/60HZ
2, driving mode: servo motor, horizontal drive, automatic simulation of human hands to push ME equipment to cross the threshold of motion and rough handling test.
3, Speed: 0.8m/s± 0.1m /s (speed 0-2m/s can be set)
4, pushing force range: 0-2000N, accuracy: ± 1%
5, count: 0~9999 times can be preset
6. Push the medical equipment ME to the designated position, tighten the telescopic push and pull arm to the appropriate position on the equipment, and then start the detection mechanism to test the automatic operation and display the push and pull force.
7. Movement over a threshold (IEC 60601-1 Section 9.4.2.4.3)
Size :10X85X1200mm
8. Ascending step shock(IEC 60601-1 Section 15.3.5)
Size: 40* 1500*1200mm
9. Descending step shock (IEC 60601-1 Section 15.3.5)
Size: 40* 1000*1200mm
10. Door frame shock. (IEC 60601-1 Section 15.3.5)
Size: 40*40*1500mm.
11. Control system: 7 inch touch screen +PLC controller
13. The platform test part has dense screw holes for M8 fixed obstacles. Barriers are replaceable.
14, menu prompt Settings, automatic test.
15, equipment size :3500*2000*1800mm(length, width and height), can be designed according to the laboratory site
16. There are protective guardrail around the equipment to prevent injury to the operator

IEC 60601-1 ME Equipment Rough Handling Tester AC 220V 50/60HZ. IEC 60601-1 — medical electrical equipment — general requirements for basic safety and essential performance. Rough handling testing covers the drops, bumps and knocks that transportable ME equipment has to survive under IEC 60601-1 clause 15.3. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.

What it measures

• The quantities named in the applicable clause of IEC 60601-1
• Worst-case supply and load conditions, selected from the front panel or automatically
• Pass/fail against the limits entered by the operator, with the reading retained for the report

Specification

How a test run works

1. Configure the supply condition and the measuring device arrangement the clause requires.
2. Connect the equipment under test, including any applied part and earth reference.
3. Select or program the sequence: normal condition first, then the single-fault conditions.
4. Run, capture the readings and compare them with the allowable values in the standard.
5. Store or print the result set; the test report needs every condition, not just the pass.

Buying notes

Confirm three things before ordering: which edition of IEC 60601-1 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.

Frequently asked questions

Is the unit calibrated before despatch?

Yes, and we re-calibrate on request.

Can it be supplied for 110 V?

Yes — other supply voltages and plug types are available; tell us the market.

Do you provide the test procedure?

We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.
