- Model： ISO 10079-1
Product Description
ISO10079-1:2015 Test Equipment List
| ISO10079-1:2015 Test Equipment List | ||
| Clause Name | Test Name | Note |

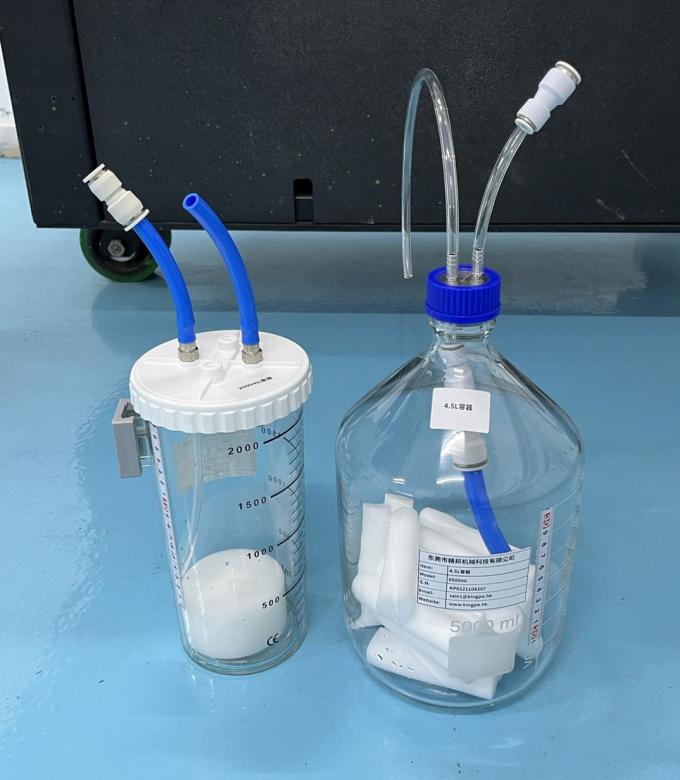

| 6.1.2&7.5.2 | Container capacity: (ISO10079-1, Sub-Clause 6.1.2) &Overflow protection of electrical suction equipment: (ISO10079-1, Sub-Clause 7.5.2) | |
| 6.1.3 | Container strength: (ISO10079-1, Sub-Clause 6.1.3) | |
| 6.3.1 | Degree of collapse of Suction tubing: (ISO10079-1, Sub-Clause 6.3.1) | Figure A.2 — Test apparatus for degree of collapse for suction tubing |
| 7.5.3.1 | Negative pressure protection | |
| 7.5.3.2 | Positive Pressure PROTECTION of electrical suction equipment: (ISO10079-1, Sub-Clause 7.5.3.2) | Figure A.3 — Typical apparatus for testing positive-pressure protection in thoracic drainage |
| 7.7.1 | Air leakage-Collection containers for general use: (ISO10079-1, Sub-Clause 7.7.1) | Figure A.4 — Typical apparatus for testing leakage of collection container for general use |
| 7.7.2 | Air leakage-Collection containers for thoracic drainage: (ISO10079-1, Sub-Clause 7.7.2) | Figure A.8.2 — Typical apparatus for testing leakage of collection container for thoracic drainage |
| 8.1 | Dimensions(ISO10079-1, Sub-Clause 8.1) | |

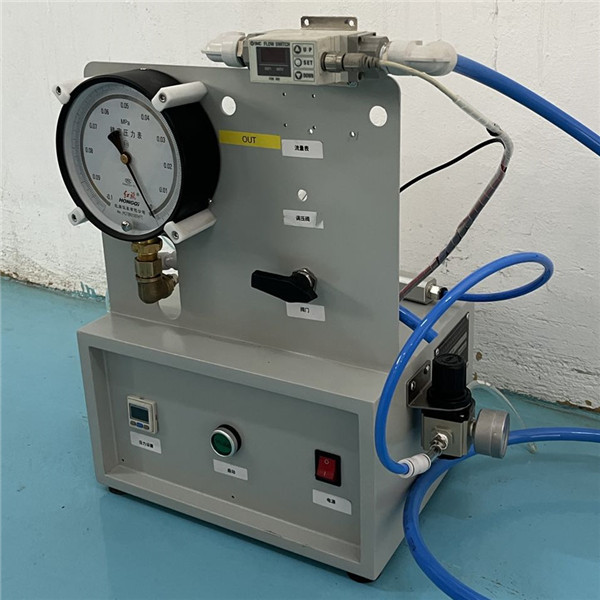

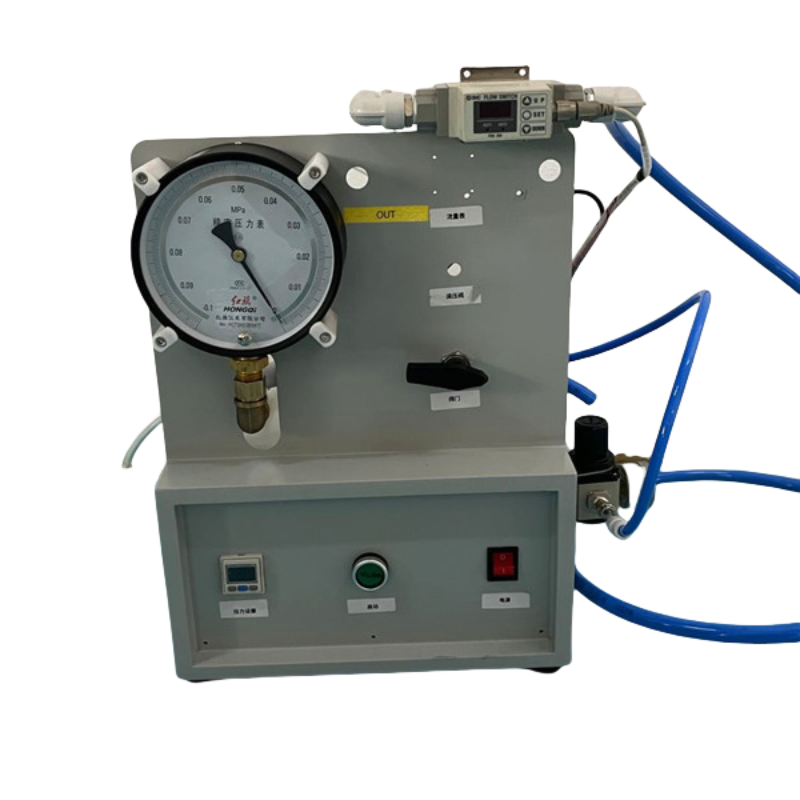

| 9.1 | Performance requirements for vacuum level and flowrate-High vacuum/high flowrate equipment(ISO10079-1, Sub-Clause 9.1) | Figure A.6 — Apparatus for testing free air flowrate |
| 9.5 | Performance requirements for vacuum level and flowrate- Thoracic drainage equipment for adults (ISO10079-1, Sub-Clause 9.5) | Figure A.7 — Typical apparatus for testing free air flowrate for thoracic drainage equipment |
| 9.6 | Intermittent vacuum equipment (ISO10079-1, Sub-Clause 9.6) | |
| 9.7 | Vacuum regulators with fixed setting(ISO10079-1, Sub-Clause 9.7) | Figure A.8 — Arrangement of apparatus for testing vacuum regulators |
| 9.8 | Vacuum regulators with variable setting(ISO10079-1, Sub-Clause 9.8) | Figure A.8 — Arrangement of apparatus for testing vacuum regulators |
| 9.9 | Equipment intended for pharyngeal suction(ISO10079-1, Sub-Clause 9.9) | |
| 9.10 | Battery powered transportable suction equipment(ISO10079-1, Sub-Clause 9.10) | Figure A.9 — Battery powered suction equipment |
| 9.11 | Interruption of the power supply(ISO10079-1, Sub-Clause 9.11) | |
ISO 10079-1 Medical Suction Equipment , Part 1 Electrically Powered Suction Equipment. ISO 10079-1 — Medical suction equipment — Part 1: electrically powered suction equipment. Kingpo machines reference connectors and gauges in-house from hardened steel, inspects them against the figure before despatch and supplies them with a calibration certificate.
What it is used for
- Dimensional and mechanical checks on the connector under test
- Repeatable mating with the sample so results are comparable between laboratories
ISO 10079-1 specifies the requirements for electrically powered medical suction equipment, including the measurements a test bench has to make.
Specification
| Standard | ISO 10079-1 |
| Material | Hardened stainless / tool steel |
| Calibration | Calibration certificate supplied |
| Made by | Kingpo — machined, inspected and calibrated in-house |
How the test is run
- Condition the reference connector and the sample together at the test temperature stated in the standard.
- Mate the sample to the reference connector with the axial force or torque the standard specifies — never by hand feel alone.
- Apply the test medium. Leakage tests use liquid under positive pressure or air under sub-atmospheric pressure; mechanical tests use a tensile or compressive load at a controlled rate.
- Hold for the dwell time in the standard and record the reading.
- Repeat for the number of samples the protocol calls for and report the worst case, not the average.
Reference connectors are inspection tools. Overriding tests and repeated axial-load tests wear them by design — plan replacement against test cycles.
Choosing the right figure
Annex C (and the equivalent annexes in the other parts) assigns one figure per reference connector, and each figure is certified for a specific set of tests. Picking the wrong one is the most common specification error in this category: the connectors look almost identical, but a figure that is certified for leakage is not the one you use for separation from axial load. Order against the figure number in your test protocol, not against the photograph.
What this is not
A reference connector is not a complete test system. Leakage, sub-atmospheric air leakage and separation-force tests need pressure, vacuum or force applied through ISO 80369-20 test apparatus. It is also not a simple go/no-go dimensional gauge: for a quick fit check on a conical fitting you want a plug gauge or a ring gauge, not a reference connector.
Frequently asked questions
Can I use one reference connector for several tests?
Only the tests the figure is certified for. Different figures are machined to different limits and, in some cases, to different materials, because the test loads differ.
Do you supply the test apparatus as well?
Yes. Kingpo builds the ISO 80369-20 apparatus — leakage, sub-atmospheric air leakage, separation force and unscrewing torque — alongside the reference connectors.
Is a calibration certificate included?
Yes, and we re-calibrate reference connectors you already hold.
Related gauges and equipment
Other Kingpo gauges and test equipment:
- IEC 60601-1-Figure 34 Spark Ignition Test Apparatus
- ANSIAAMI EC12：2000(R2005) Disposable ECG Electrode Performance Tester
- Charge And Discharge Battery Testing Machine Minimum Output Current 150mA
- RCDS-100V200A Technical Specification for battrry Charge and Discharge Equipment
- IEC 60601-1 Grips And Other Handling Devices-7 Cm Strap Tester
- KP-5067-C Battery Testing Services , Battery Compression Tester PLC Control
Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.
Parameters of the ISO 10079-1 Medical Suction Equipment , Part 1 Electrically Powered Suction Equipment. Dimensions and limits are those of the reference connector defined by the standard named above.
| Standard | ISO 10079-1 |
| Material | Hardened stainless / tool steel |
| Scope of supply | Reference connector / gauge and calibration certificate |
| Calibration | Calibration certificate supplied; re-calibration available |
| Origin | Kingpo — machined, inspected and calibrated in-house |
Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Reference connectors are consumable inspection tools — plan replacement against test cycles.
