Name: Defibrillator effect/energy tester
Brand: Kingpo
SKU: product218

Defibrillator effect/energy tester

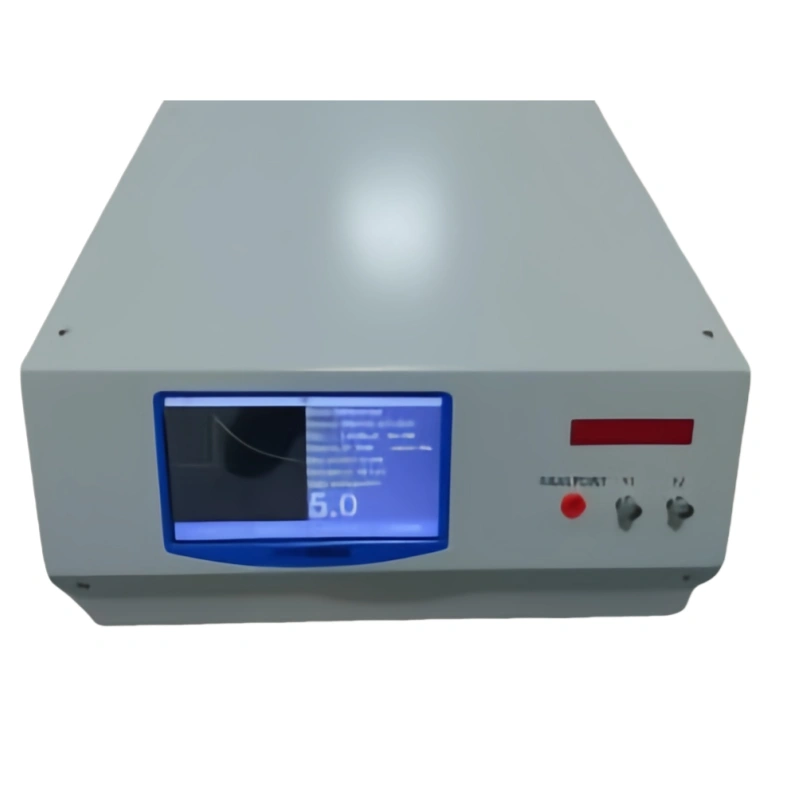

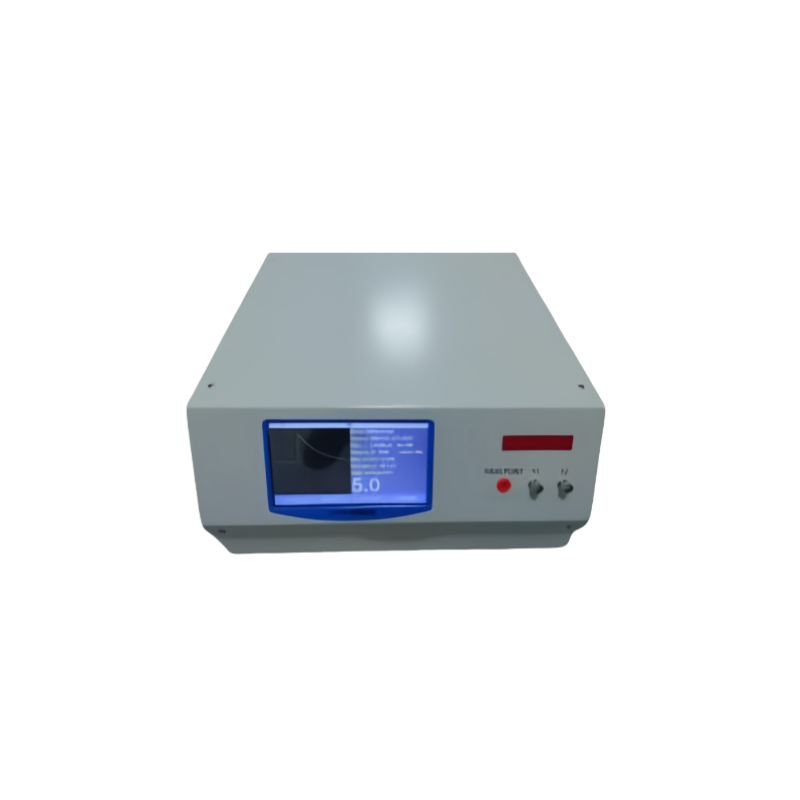

Host (DFT60) Defibrillator conversion box (optional)

one, Main features of the defibrillator effect/energy tester:

1) The defibrillator effect & energy tester realizes the following functions:

a , protection against defibrillation effects (common mode , differential mode) test , manual and automatic testing optional;

b , Added respiratory defibrillator effect protection test ;

c , Automatic calculation of defibrillation energy ;

d , Automatic calculation of residual voltage integration standards for defibrillator test circuit

External defibrillator lead conversion box ,exist" Automated testing " mode , the leads can be switched automatically by software , no need to switch manually one by one , promote efficiency and safety;

3) Automatic calculation of residual voltage (Y1-Y2) , avoid external oscilloscope measurement, Inaccurate data due to defibrillation interference ;

4) Use imported solid capacitors (capacitance 32 uf voltage 8 kv ) and high voltage vacuum relays , greatly improving reliability;

5) Easy connection , easy to operate , you will know at a glance , you will become familiar with it after using it for a while.

two, Main technical specifications of the defibrillator effect/energy tester:

Parameter name	Defibrillator effect/energy tester ( DFT 60) Technical Specifications
Charging voltage	0~ ±5500V±1%	Main capacitor	32uF ± 5%
inductance	500 uH and 25 mH ±5%	Internal resistance	10 Ω , 11Ω automatically switches according to the standard or Settings
Main resistance	50Ω and 400 Ω ±1% non-inductive	Internal signal	5 mV , 10 Hz sine wave signal and breathing wave Signal
Voltage Control	Digital settings	Polarity control	Positive and negative poles, digital setting
Voltage display	7 Inch LCD touch screen
Voltmeter resolution	1V
Voltmeter accuracy	± 1%
Energy Test	- Working only: 25 mH inductance (meets energy saving test requirements) -Display resolution: 1 joule Where: No-load test, R is 10 Ω , Theoretical value 364J±1%; R is 1 1 Ω , Theoretical value 360J±1%;
Working conditions	1) Operating temperature: 15-28 ºC 2) Relative humidity range: 0-90% non-condensing 3) Supply voltage : Single-phase 220V±10%, 50/60 Hz
Applicable standards	GB 9706.227-2021 , GB 9706.225-2021 , EC 53 , EC 13 , IEC 60601-1 :20 20 , IEC 60601-2-34, IEC 60601-2-49 , IEC 60601-2-27:2011 , IEC 60601-2- 25:2011、 IEC 60601-2-30、 GB 9706.1-2020、 YY 0828-2011, etc.

Defibrillator effect/energy tester. IEC 60601-2-4 — medical electrical equipment — particular requirements for the basic safety and essential performance of cardiac defibrillators. Defibrillator testers measure delivered energy into a defined load and check the accuracy of the indicated energy. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.

What it measures

The quantities named in the applicable clause of IEC 60601-2-4
Worst-case supply and load conditions, selected from the front panel or automatically
Pass/fail against the limits entered by the operator, with the reading retained for the report

Specification

Standard	IEC 60601-2-4
Function	Defibrillator effect/energy tester
Control	Programmable test sequences with stored results
Power supply	AC 220 V 50/60 Hz (other supplies on request)
Calibration	Calibration certificate supplied
Made by	Kingpo — built, tested and calibrated in-house

How a test run works

Configure the supply condition and the measuring device arrangement the clause requires.
Connect the equipment under test, including any applied part and earth reference.
Select or program the sequence: normal condition first, then the single-fault conditions.
Run, capture the readings and compare them with the allowable values in the standard.
Store or print the result set; the test report needs every condition, not just the pass.

Buying notes

Confirm three things before ordering: which edition of IEC 60601-2-4 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.

Frequently asked questions

Is the unit calibrated before despatch?

Yes, and we re-calibrate on request.

Can it be supplied for 110 V?

Yes — other supply voltages and plug types are available; tell us the market.

Do you provide the test procedure?

We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.

Related gauges and equipment

Other equipment in the same range:

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.

Parameters of the Defibrillator effect/energy tester. Test conditions and limit values come from IEC 60601-2-4; the instrument is configured to run them and to record the readings.

Application	IEC 60601-2-4 test programme
Function	Defibrillator effect/energy tester
Control	Programmable test sequence with stored results
Data output	Result storage and report export
Power supply	AC 220 V 50/60 Hz (other supply voltages on request)
Scope of supply	Instrument, test leads and calibration certificate
Calibration	Calibration certificate supplied; re-calibration available
Origin	Kingpo — machined, inspected and calibrated in-house

Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the clause numbers you test against and we will confirm the configuration.
