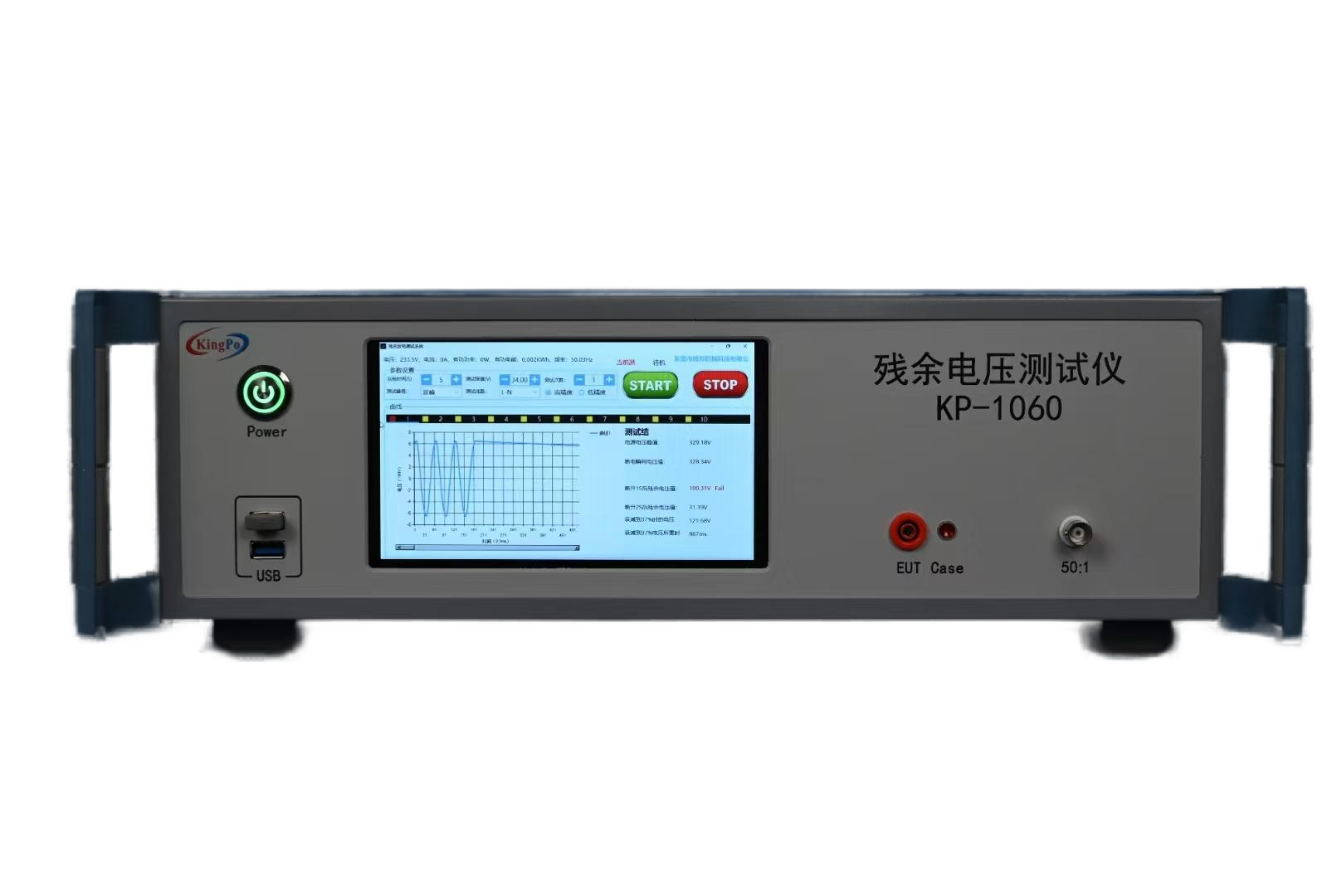

Technical Specifications for KP-1060 Capacitor Discharge Tester

Technical Specifications for KP-1060 Capacitor Discharge Tester

1. Overview

The KP-1060 Capacitor Discharge Tester is a specialized instrument designed to measure the residual voltage in electrical equipment after power disconnection. It is particularly useful for ensuring the safety of users and service personnel by verifying that the equipment does not pose an electrical shock hazard once it is turned off. The tester is designed to comply with various national and international safety standards, including IEC60601.1-2020 and IEC60335.1

2. Purpose

The primary purpose of the KP-1060 is to evaluate the decay of voltage in accessible electrical terminals immediately after the main power is disconnected. This ensures that the equipment is safe for users and service personnel by verifying that the residual voltage meets safety standards

3. Feature

High Precision Measurement: Ensures accurate measurement of residual voltage, providing reliable data for safety assessments.
Peak Voltage Detection: The tester disconnects the input test voltage at the voltage peak, ensuring precise measurement at the peak of the supply voltage
Multiple Test Options: Capable of testing Line-Ground, Line-Neutral, and Neutral-Ground connections
Micro-controller Technology: Features one-button testing and easy setup with an LCD display for clear test results
Rugged Design: Built to withstand harsh conditions and designed for safety, speed, and efficiency

4. Technical Specifications

Output Voltage Range: AC 0–300V, 50/60Hz
Maximum Output Current: 10A
Maximum Load Power: 3KVA
Test Voltage Range: 10–300V with a display resolution of 0.1V
Test Time: Disconnection and testing can be set to occur 1 second or 2 seconds after the power is disconnected, with the disconnection time being selectable
Measurement Times: 1–99 times, selectable
Test Impedance: 100±5 MΩ
Frequency: 50–60Hz
Dimensions: 4U standard rack mount
Power Supply: External test power sourc.

5. Applications

Medical Equipment Testing: Ideal for testing the residual voltage in medical devices to ensure compliance with safety standards
Home Appliances: Used to verify the safety of household appliances by measuring residual voltage after power disconnection
Laboratory and R&D: Useful in research and development settings for testing and improving the safety of electrical equipment

6. Compliance and Certifications

Standards Compliance: Adheres to IEC60601.1-2020 and IEC60335.1 standards, ensuring that the equipment meets the required safety specifications
Certifications: The device is designed to meet the requirements of various international standards, ensuring its reliability and accuracy in testing

Technical Specifications for KP-1060 Capacitor Discharge Tester. IEC 60601-1 — medical electrical equipment — general requirements for basic safety and essential performance. Capacitor discharge testing verifies that stored charge is dissipated to a safe level within the specified time. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.

What it measures

The quantities named in the applicable clause of IEC 60601-1
Worst-case supply and load conditions, selected from the front panel or automatically
Pass/fail against the limits entered by the operator, with the reading retained for the report

Specification

Standard	IEC 60601-1
Function	Technical Specifications for KP-1060 Capacitor Discharge Tester
Control	Programmable test sequences with stored results
Power supply	AC 220 V 50/60 Hz (other supplies on request)
Calibration	Calibration certificate supplied
Made by	Kingpo — built, tested and calibrated in-house

How a test run works

Configure the supply condition and the measuring device arrangement the clause requires.
Connect the equipment under test, including any applied part and earth reference.
Select or program the sequence: normal condition first, then the single-fault conditions.
Run, capture the readings and compare them with the allowable values in the standard.
Store or print the result set; the test report needs every condition, not just the pass.

Buying notes

Confirm three things before ordering: which edition of IEC 60601-1 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.

Frequently asked questions

Is the unit calibrated before despatch?

Yes, and we re-calibrate on request.

Can it be supplied for 110 V?

Yes — other supply voltages and plug types are available; tell us the market.

Do you provide the test procedure?

We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.

Related gauges and equipment

Other equipment in the same range:

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.

Parameters of the Technical Specifications for KP-1060 Capacitor Discharge Tester. Test conditions and limit values come from IEC 60601-1; the instrument is configured to run them and to record the readings.

Application	IEC 60601-1 test programme
Function	Technical Specifications for KP-1060 Capacitor Discharge Tester
Control	Programmable test sequence with stored results
Data output	Result storage and report export
Power supply	AC 220 V 50/60 Hz (other supply voltages on request)
Scope of supply	Instrument, test leads and calibration certificate
Calibration	Calibration certificate supplied; re-calibration available
Origin	Kingpo — machined, inspected and calibrated in-house

Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the clause numbers you test against and we will confirm the configuration.
