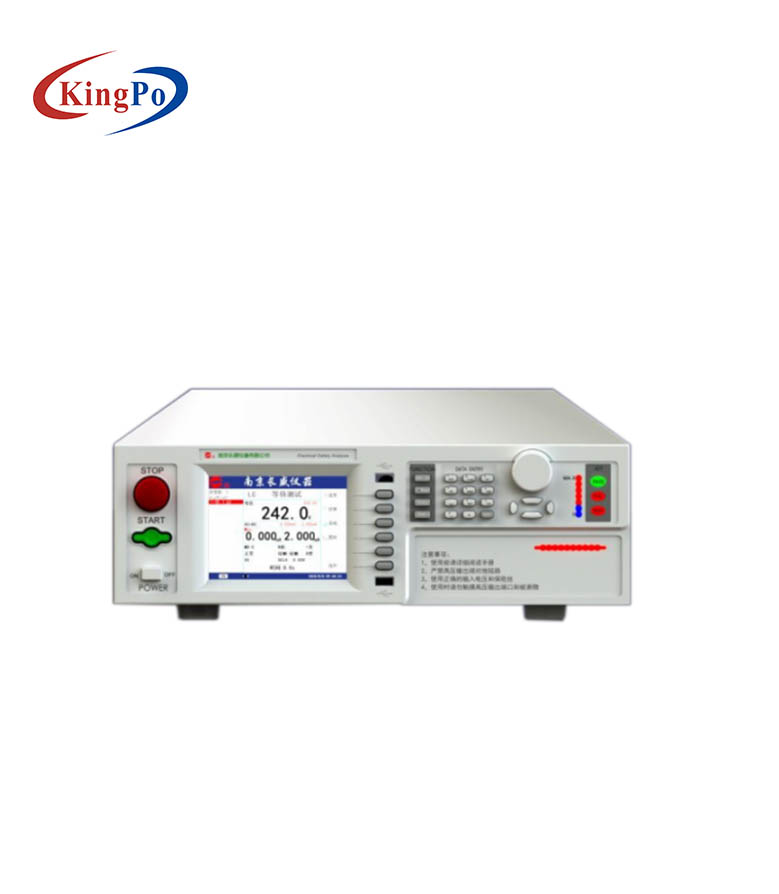

IEC60601 Programmable Leakage Current Tester

IEC60601 Programmable Leakage Current Tester 0

IEC60601 Programmable Leakage Current Tester 1

Use 5.6 inch TFT (640*480) to display the setting parameters and test parameters, and the display content is eye-catching and rich;
 The tester can store the test results in the format of EXCEL table in U;
 Software can be upgraded through U disk;
 Compliance leakage current test Human body network: GB9706.1(IEC60601-1)/GB4793.1(IEC61010-1)/GB4706.1(IEC60335-1)/GB4943.1(IEC60950-1)/
GB8898(IEC60065)/GB7000.1(IEC60598-1)/GB/T12113(IEC60990) standard;
Leakage current provides four detection methods of AC, AC+DC, PEAK, DC;
Provide auxiliary power supply required for medical equipment testing;
Bilingual operation interface in Chinese and English to adapt to the needs of different users;
 Support keyboard lock operation to prevent irrelevant personnel from modifying test parameters;
Support conversion between test files, explanation: when there are many test steps, you can distinguish by file name, which is convenient for parameter adjustment in the later period;
Can be equipped with CS26045Y test box to realize multi-point scanning test;
Support scan code gun function;
 Standard PLC interface, RS232 interface, optional LAN interface, RS485 interface, USB interface.

Model				CS9975-SIW
Leakage current	voltage	range		30.0V～300.0V
		Precision		±(2％ reading +2V)
		Resolution		0.1V
	Maximum external isolated power supply			6000VA
	Current gear			20uA, 200uA,2mA,20mA
	Detection method			AC,RMS,PEAK,DC
	Current upper limit setting			00.1uA～20.00mA
	Current lower limit setting			00.0uA ～Current upper limit

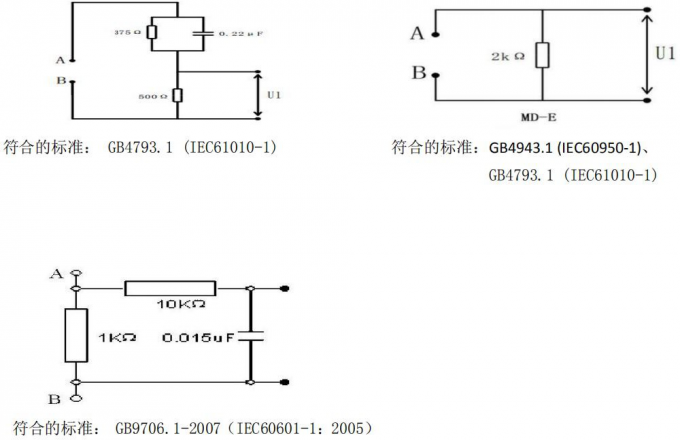

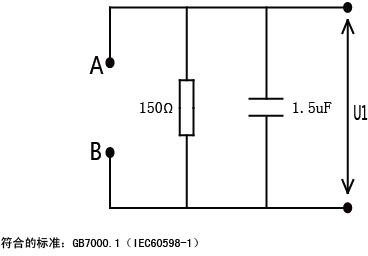

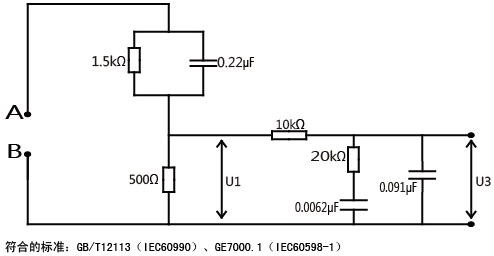

	MD Human Network			GB9706.1(IEC60601-1)	GB4793.1(IEC61010-1)/ GB4706.1(IEC60335-1)/ GB4943.1(IEC60950-1)/ GB8898(IEC60065)/ GB7000.1(IEC60598-1)/ GB/T12113(IEC60990)
	Voltage rise time			Can not be set
	testing time			(0.0, 0.3～999.9)s 0=continuous test
	Intervals			(0.0～999.9)s 0=interval time off
Leakage current meter	Measuring range			00.0uA ～ 20.00 mA
	Resolution			20 uA 档:0.1uA,200 uA 档:0.1uA,2mA 档:1uA,20mA 档:10uA
	measurement accuracy		AC	I≥5 uA ±(2%rdg+0.5%fs)	I≥50 uA ±(2%rdg+0.5%fs)
			DC	I≥5 uA ±(2%rdg+0.5%fs)	I≥50 uA ±(2%rdg+0.5%fs)
			AC+DC	I≥5 uA ±(2%rdg+0.5%fs)	I≥50 uA ±(2%rdg+0.5%fs)
			PEAK	I≥50 uA ±(2%rdg+2%fs)
Leakage voltage meter	range			30.0V～300.0V
	Precision			±(2%+2V)
	Resolution			0.1V
	Display value			Root mean square
Timing Device	range			0～999.9s
	Resolution			0.1s
	Precision			±(1%+50ms)
Memory group				30
Test step				99
Input power supply voltage				220V±10%,50Hz
Import the memory file to the U disk, and export the U disk to the instrument				support
Export storage results to U disk				support
Standard interface				RS232 interface, PLC interface

Tag:

medical test machine,

medical testing device,

IEC test equipment

IEC60601 Programmable Leakage Current Tester. IEC 60601-1 — medical electrical equipment — general requirements for basic safety and essential performance. Leakage current measurement is one of the core electrical safety tests of IEC 60601-1 clause 8.7: the equipment is energised at the worst-case supply condition and the current through the measuring device is compared with the allowable values. This unit is built by Kingpo for bench use in a medical electrical safety laboratory, and it is supplied with a calibration certificate.

What it measures

The quantities named in the applicable clause of IEC 60601-1
Worst-case supply and load conditions, selected from the front panel or automatically
Pass/fail against the limits entered by the operator, with the reading retained for the report

Specification

Standard	IEC 60601-1
Function	IEC60601 Programmable Leakage Current Tester
Control	Programmable test sequences with stored results
Power supply	AC 220 V 50/60 Hz (other supplies on request)
Calibration	Calibration certificate supplied
Made by	Kingpo — built, tested and calibrated in-house

How a test run works

Configure the supply condition and the measuring device arrangement the clause requires.
Connect the equipment under test, including any applied part and earth reference.
Select or program the sequence: normal condition first, then the single-fault conditions.
Run, capture the readings and compare them with the allowable values in the standard.
Store or print the result set; the test report needs every condition, not just the pass.

Buying notes

Confirm three things before ordering: which edition of IEC 60601-1 your market requires, whether you need the single-fault conditions automated, and what load range your products actually present. Sending us the clause numbers you test against is usually faster than comparing model names.

Frequently asked questions

Is the unit calibrated before despatch?

Yes, and we re-calibrate on request.

Can it be supplied for 110 V?

Yes — other supply voltages and plug types are available; tell us the market.

Do you provide the test procedure?

We supply the operating procedure and, where the standard allows, the test sequence pre-programmed.

Related gauges and equipment

Other equipment in the same range:

Send the standard, figure number and quantity to Kingpo technical sales for a quotation and delivery date.

Parameters of the IEC60601 Programmable Leakage Current Tester. Test conditions and limit values come from IEC60601; the instrument is configured to run them and to record the readings.

Standard	IEC60601
Function	IEC60601 Programmable Leakage Current Tester
Control	Programmable test sequence with stored results
Data output	Result storage and report export
Power supply	AC 220 V 50/60 Hz (other supply voltages on request)
Scope of supply	Instrument, test leads and calibration certificate
Calibration	Calibration certificate supplied; re-calibration available
Origin	Kingpo — machined, inspected and calibrated in-house

Custom versions, alternative materials and re-calibration are available. Send the standard, figure number and quantity for a quotation. Tell us the clause numbers you test against and we will confirm the configuration.
