ISO 80369-3 Test Equipment LIst

2021-05-08 06:47:49

O 80369-6:2016 Reference Connectors and ISO 80369-20:2015 Test Equipment

ISO 80369-6:2016 Clause

Required Annex of ISO 80369-20:2015

Enersol equipment required

Requried Enersol reference connectors for testing

Neuraxial small-bore connectors

Clause 6 - all sub-clauses

Annex B through I requires the assembly of the appropriate reference connector (i.e. from ISO 80369- 6 Annex C) with the test sample, using a specified

force and torque to assemble them.

Connector assembly device

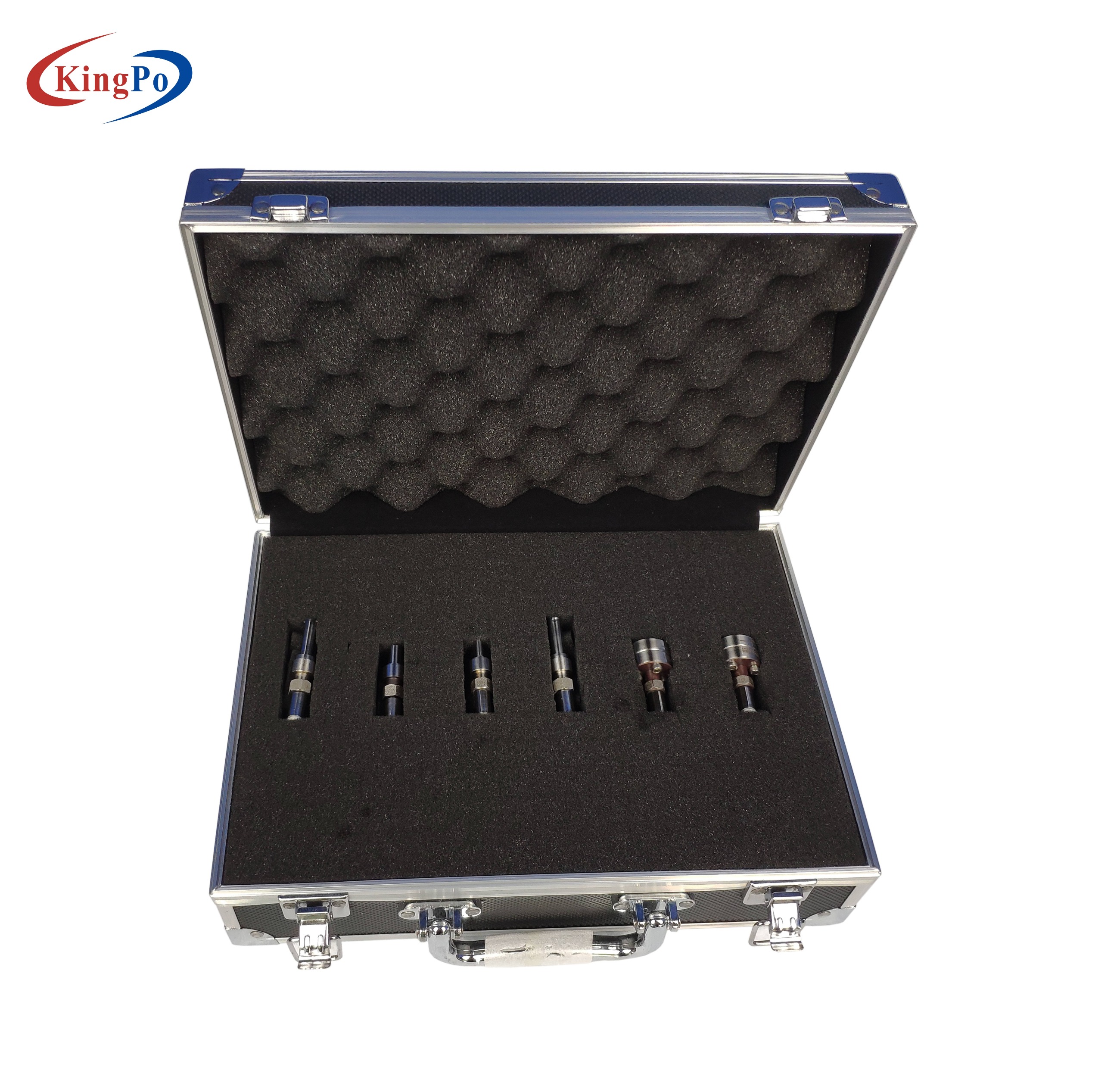

Any/all reference connectors

Clause 6.1.1 - Fluid leakage requirement

Evaluate using EITHER leakage by pressure decay, or positive pressure liquid leakage. It is inferred the same method is used after the stress cracking conditioning.

Clause 6.1.2 - Leakage by pressure decay

Annex B - Leakage by Pressure Decay

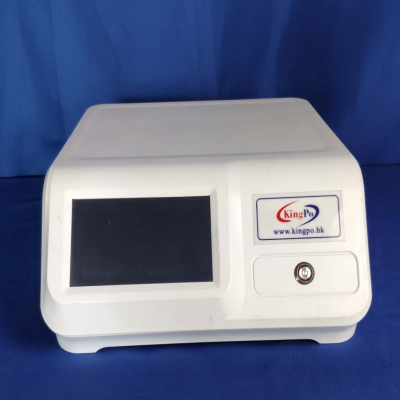

Automated pressure decay tester

ISO80369-6 Fig. C.1 FC for testing MC S69  ISO80369-6 Fig. C.4 MC for testing FC

ISO80369-6 Fig. C.2 MC for testing FC

Clause 6.1.3 - Positive pressure liquid leakage

Annex C - Positive Pressure Liquid Leakage

Positive pressure liquid leakage tester

ISO80369-6 Fig. C.1 FC for testing MC S69 - ISO80369-6 Fig. C.4 MC for testing FC S71 - ISO80369-6 Fig. C.2 MC for testing FC

Clause 6.2 - Subatmospheric pressure air leakage

Annex D - Subatmospheric pressure air leakage

Automated subatmospheric pressure air leakage tester

ISO80369-6 Fig. C.1 FC for testing MC

ISO80369-6 Fig. C.4 MC for testing FC S71 ISO80369-6 Fig. C.2 MC for testing FC

Clause 6.3 - Stress cracking*

Annex E - Stress cracking


ISO80369-6 Fig. C.1 FC for testing MC

ISO80369-6 Fig. C.4 MC for testing FC S71 - ISO80369-6 Fig. C.2 MC for testing FC

Clause 6.4 - Resistance to separation from axial load

Annex F - Resistance to separation from axial load

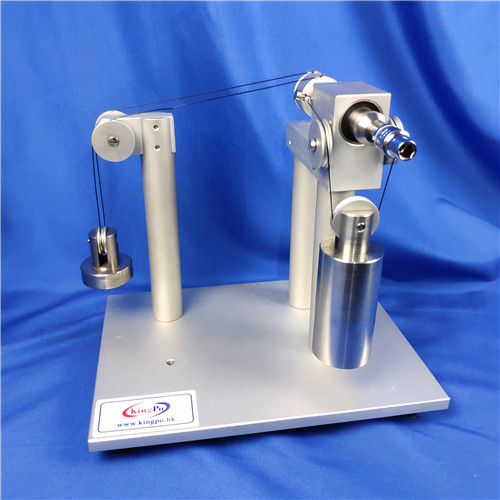

Separation force device

S68 - ISO80369-6 Fig. C.3 FC for testing MC

S70 - ISO80369-6 Fig. C.5 MC for testing FC

Clause 6.5 - Resistance to separation from unscrewing

Annex G - Resistance to separation from unscrewing

Unscrewing torque device

S67 - ISO80369-6 Fig. C.1 FC for testing MC S69 - ISO80369-6 Fig. C.4 MC for testing FC

S71 - ISO80369-6 Fig. C.2 MC for testing FC

Clause 6.6 - Resistance to overriding

Annex H - Resistance to overriding


S68 - ISO80369-6 Fig. C.3 FC for testing MC

S70 - ISO80369-6 Fig. C.5 MC for testing FC


KEY: FC = Female Connector MC = Male Connector

* = There is an error in ISO 80369-6:2016 Clause 6.3. This clause states that the connectors shall meet the requirements of Clause 6.1.2 after stress cracking. This reference to Clause 6.1.2 is a mistake that is intended to b

corrected. Clause 6.3 should state Clause 6.1.1 instead of Clause 6.1.2. Clause 6.1.1 requires either Clause 6.1.2 (Leakage by pressure decay) or 6.1.3 (Positive pressure liquid leakage) be used. There will be an update to correct the reference to Clause 6.1.1 in due course.
