Charge And Discharge Battery Testing Machine Minimum Output Current 150mA

Charge And Discharge Battery Testing Machine Minimum Output Current 150mA

  • Model:

RCDS-100V100A

Technical Specification for battrry Charge and Discharge Equipment

Application Scope and Function of Equipment

1.1Scope of equipment application: Mainly used to include lithium ion batteries, lead acid batteries, nickel cadmium batteries, nickel hydrogen batteries and other batteries in the production or experiment (CircleLifeTesting) and quality control.

1.2test contents of the support: battery cycle life test, battery capacity test, battery charging characteristics test, battery discharge characteristics test, battery charge-holding capacity test, battery charge-discharge efficiency test, battery overcharge, over-discharge rate tolerance test, etc.

Equipment environmental requirements and technical parameters

Power supply: AC voltage 380V ±10%, frequency:50Hz ±10%

Ambient temperature:0-45°C

Environmental humidity: not greater than 95% R.H (anhydrous vapor condensation)

No strong vibrations, non-corrosive gases and inflammable and explosive gases

Resolution: AD:16bit

Technical parameters

NumberModelRCDS-100V100A
1Number of Main Channels 4CH / Rack
2output power

Maximum power 10kW for channel operation; no time limit

3

output power stability

±(0.1%FS+0.1%RD)
4

Input side power quality

power factor>99%loaded to capacity
Total harmonic distortion rate≤5%loaded to capacity
6Energy consumption parameters

Standard sine wave feedback energy, high efficiency (optimum efficiency 90%)

7

Main Channel Working Mode

Charging: constant current charging CC, constant voltage charging CV, constant current constant voltage charging CCCV, constant current constant voltage charging process conversion needs to achieve no impulse voltage current;

Discharge: constant current discharge CD, constant power amplifier CP, constant resistance discharge CR, constant voltage constant current discharge

pause n.

Keywords Working condition test; Pulse test;

8Main channel voltageSingle Channel Measurement Range

0.2V-100V, with continuously adjustable intermediate values (wide test range, suitable for various battery module test requirements)

Minimum discharge voltage7V
precision±(0.05%FS+0.05%RD)
Resolution1mV
Main channel currentSingle Channel Measurement Range-200A~+200A
Minimum output current150mA
precision±(0.05%FS+0.05%RD)
resolution ratio1mA
response time<10ms

apolegamy assist

voltage

Number of channels

32

Measurement range

DC:0-5V

Measurement precision

±(0.05%FS+0.05%RD)

resolution ratio

1mV

apolegamy assist

temperature

number of tracks8
Measuring Range﹣50℃~300℃
Accuracy in measurement±1℃
Resolution ratio0.1℃
timeData acquisition resolution10ms
9

Equipment communication mode

Support LAN communications

Battery BMS communications

Support CAN 2.0A, CAN 2.0B; RS485 communications

Supports DBC import, enables data reading with BMS CAN and participates in process control

10

Control control program

Support power down data protection, support for power failure, manual stop, data file succession testing, online modification of step parameters

Safety protection conditions can be set. Parameters include: voltage lower limit, voltage upper limit, current lower limit, current upper limit temperature upper limit

Auxiliary channel / BMS protection conditions can be set. The parameters can include: voltage upper limit, voltage lower limit, temperature upper limit, temperature lower limit, single cell pressure difference

cycle indexMAX10000
Programmable stepsMAX10000
Loop nestingMaximum 10 floors

Step Time Range

Unlimited support for h, min, s format

Minimum interval for data recordingTime ≥10ms, voltage ≥0.1% FS, current ≥0.1% FS, and supporting step-by-step setting of recording conditions

Programming Features

Each work step may have one or more exits

11        work patternConstant-current chargingBattery pack voltage, time, capacity, electricity, monomer temperature, monomer voltage, cell voltage difference, RSOC,- V up to
Constant-voltage chargingCurrent, time, capacity, electricity, monomer temperature, monomer voltage, cell voltage difference, RSOC,- V up to
Constant current and constant voltage chargingCurrent, time, capacity, electricity, monomer temperature, monomer voltage, cell voltage difference, RSOC,- V up to
ShelveEnd of time
Constant-current dischargeBattery pack voltage, time, capacity, electricity, cell temperature, cell voltage, cell voltage difference up to
Constant power dischargeBattery pack voltage, current, time, capacity, electricity, cell temperature, cell voltage, cell voltage difference up to
Constant resistance dischargeBattery pack voltage, current, time, capacity, electricity, cell temperature, cell voltage, cell voltage difference up to
12

Data presentation

Circular listHave cycle serial number, charge/discharge capacity, charge/discharge efficiency, charge/discharge energy, charge/discharge level average voltage, etc.

List of processes

There are process serial number, operation mode, process time, capacity, energy, median voltage, termination voltage, termination current, etc.

Detailed list

There are record number, system time, accumulative time, voltage, current, energy, monomer temperature1--monomer temperature n, monomer voltage 1-- monomer voltage n, monomer voltage extreme difference, etc.
13Data exportData can be led into excel, TXT, chart file, can provide charge-discharge curve, capacity decay rate, cycle life curve, charge-discharge voltage, current, capacity-time and other ways of data analysis curve and data list
14Data save modeThe user can customize the name and the data save path, and the data can be saved by file
15Type of curveX coordinates: total time, charge/discharge time/capacity, number of cycles
Y coordinates: total voltage, current, capacity, energy, monomer voltage 1-monomer voltage n, monomer temperature 1-monomer temperature n
16Input protectionOver-voltage, over-current, lack of phase, over-temperature, protection alarm;
Output protectionOver-voltage, over-current, short-circuit, capacity, temperature, monomer overvoltage, monomer under-voltage protection; without detecting the battery voltage, no output;
Power-off protectionAfter the external power is cut off, the battery and the equipment are automatically disconnected to avoid the accident caused by re-powering.
Hardware protectionPower off protection, open circuit protection, short circuit protection; battery connection back, fault protection, over-current protection, overvoltage protection, over-temperature protection, hardware overvoltage over-current protection

Short-circuit protection

External short circuit;
Software protectionPower down data protection, call continuation, overvoltage over-discharge protection, over-current protection, capacity protection, over-temperature protection, voltage trend abnormal protection, current trend abnormal protection, current fluctuation abnormal protection, voltage fluctuation abnormal protection, charge voltage rise speed abnormal protection, discharge current drop speed abnormal protection, equipment communication abnormal protection, auxiliary module communication abnormal protection
Alarm functionThe hardware has the functions of emergency cutting off switch, automatic shutdown after power off, automatic load connection and disconnection.
17

Cooling-down method

Forced air cooling
18Sampling terminalsFour-electrode sampling mode, fixture line terminal or other
19Auxiliary Channel Collection LineAcquisition cable length adjustable according to actual situation
20Security classificationMeet EN 60950, GB 4943 requirements
noiseThe noise is less than 70dBA, the sound level meter used should meet the requirements of type I in IEC804, and the accuracy should be better than ±0.5dB.
Levels of protectionIP20
Lightning protection

Level 2 lightning protection requirements for GB 17626

21MaintainabilityModular structure, spare parts available for timely replacement, maintenance, free of charge during the warranty period
22Software upgrade serviceSoftware upgrade service provided until hardware is incompatible
23

Optional thermostat control functionThe software supports extended function software, which can automatically control the thermostat to start and stop, and adjust the temperature and humidity

Device specific advantages

Energy feedback (standard sine wave feedback energy, best efficiency 90%): energy feedback type, charge and discharge two-way are energy-saving, can save a lot of electricity consumption, while saving a lot of energy energy generated by the cost of air conditioning electricity.

CCCV charging: charging process CCCV no gap transition, no any voltage current impact. It can effectively prevent the protection action and the secondary protection action of PCB caused by the peak current of the battery due to the heat concentration of the polar ear depowdering or the micro-short circuit producing the island effect or the overshoot phenomenon.

The current and voltage sampling stability is good and the precision is high: high precision, high dynamic range ADC/DAC unit, high voltage sampling accuracy and good long-term stability.

IDUser management consists of three parts: permission management, role management and user management. The administrator can set administrative permissions for each functional module of the software, and set multiple user IDs according to the permissions of the operator

DL Dynamic Load Protection Function: Effectively protects the battery in the charge and discharge, prevents the battery fire and effectively avoids the current shock caused by the loosening of the connector, and effectively protects the electronic components of the battery from being damaged by the shock current, such as MOSFET, FUSE

Voltage clamp function: During the charging process in the battery protection action or equipment abnormal, the voltage clamp position in the safe voltage to prevent battery or battery pack protection plate damage.

The test step can set the record condition in sections and implement the intelligent data management record.

Support BMS CAN communication function: real-time acquisition of BMS system total voltage, total current, single core voltage, temperature and other data, and CDS voltage and current data to do synchronous comparison, set BMS voltage and current temperature and other data to meet certain conditions, the main channel steps to stop or convert, specific reading information provided by the customer related information.

A custom set of signals is supported. The user can customize the name according to their own requirements and data records. By adding "sub-signal quantity" as the protection parameter, the protection

Parameter can be set multiple, and the result can generate a new decision condition by calculating the operator "maximum value, minimum value, difference value, mean value,-,×," function relation

Charge And Discharge Battery Testing Machine  Minimum Output Current 150mA 0

File query: can be based on the test date, test channels, keywords and other information search related, and support data batch export

Charge And Discharge Battery Testing Machine  Minimum Output Current 150mA 1

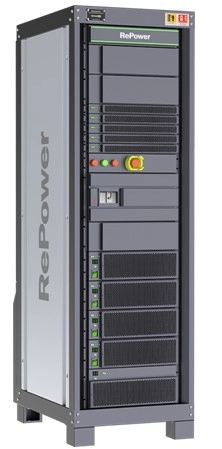

Appearance and Structure of Equipment

Cabinet

Rack size (W*D*H)

600*800*1980mm
weight≤300kg
Number of modules4CH / Rack
Remark: The above picture is for reference only, subject to physical object!

Software Testing InterfaceSoftware Testing InterfaceCharge And Discharge Battery Testing Machine  Minimum Output Current 150mA 2Setup interfaceCharge And Discharge Battery Testing Machine  Minimum Output Current 150mA 3Data interfaceCharge And Discharge Battery Testing Machine  Minimum Output Current 150mA 4Curve alignment interfaceCharge And Discharge Battery Testing Machine  Minimum Output Current 150mA 5Working condition simulation setup interfaceCharge And Discharge Battery Testing Machine  Minimum Output Current 150mA 6Working condition simulation data interfaceCharge And Discharge Battery Testing Machine  Minimum Output Current 150mA 7
