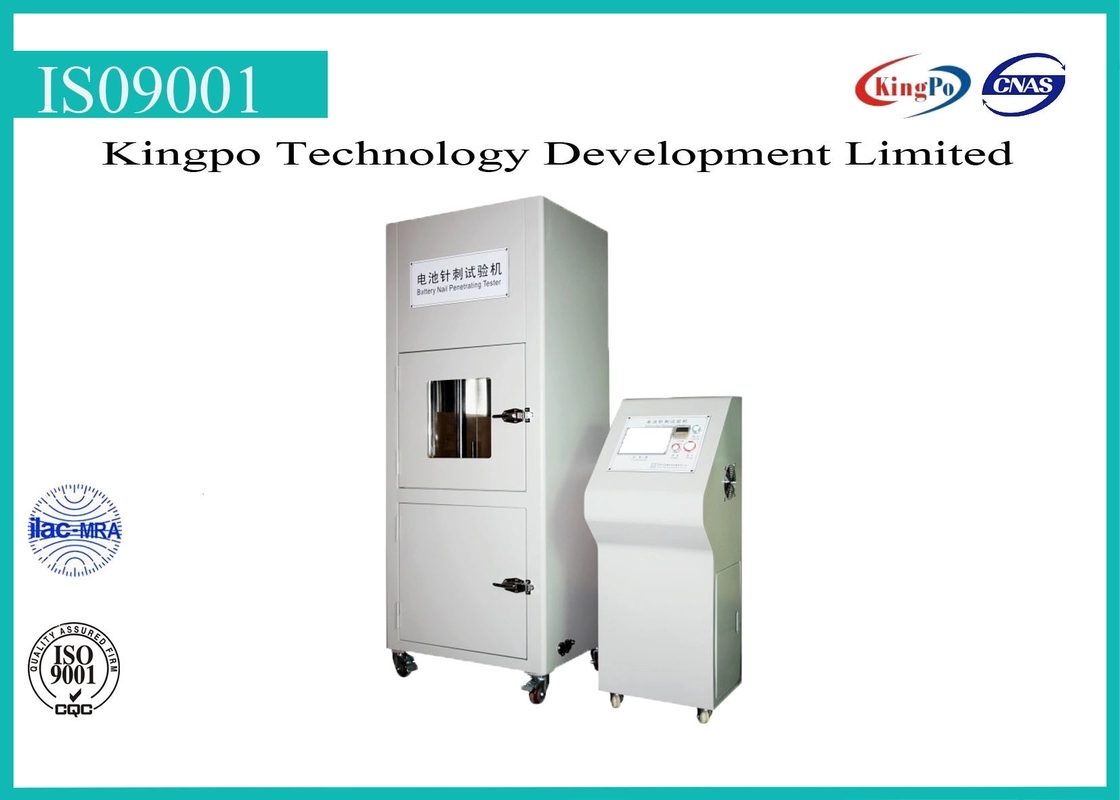

Battery Nail Penetrating Tester

Battery Nail Penetrating Tester

  • Model:

Battery Nail Penetrating Tester

Product Type: KP-6055-B

Product Description:

Remote shortcircuiter with high current is designed for standards of diversified bettery short circuit trials,which meet the requirements of GB IEC EN UN38.3 UL QC/T 743-2006“863 Plan” energy saving and new energy vehicles project--EV lithium traction battery performance test specifica-

tion,etc.Make internal resistance ≤100mΩ to get the maximum short circuit current.

Design Description:

Remote shortcircuiter with high current is designed for standards of diversified bettery,which require internal resistance ≤100mΩ to get the maximum short circuit current and to be able to bear high-current stroke.therefore,we choose industrial DC electromagnetic contactor,copper terminal and internal copperplate guide.Efficient

heat dissipation,secure shortcircuiter,reducing loss of test device and ensure data accuracy.

Meet Standard:standard of GB , IEC ,EN ,UN38.3 ,UL1642 / UL 2054,QC/T 742-2006,QC/T 743-2006,etc.Observe it after test finished 6h later with temperature of external enclosure≦170℃.Battery qualified without integration or crack.

Product Feature:

1.High-current DV contactor:

1.1 Keep away from connection and disconnection DC working voltage to 660V.

1.2 Rated working voltage 1000A.

1.3 Planar overall structure.Electromagnetic system and main contact arc-extingushing system are fixed on the underframe with clapper-type angular rotation.Electromagnetic system and duplex winding attract the coil;

1.4 Main contact consists of red copper.Low contactor’s contact resistance and quick reaction.

1.5 Reliable and secure contactor movement,long service life and convenient maintenance.

2.Remote Control

2.1 Wireless control over long distance.

2.2 Reliable and stable operation,has self-lock and interock function,strong antijamming feature and long service life.

3.Voltmeter

3.1 Voltage Measurement:0-100V,ensure accuracy

3.2 Accuracy Display:F.S ±0.2% rdg ±1digit

3.3 Action Mode:double integral

4.Ammeter

4.1 Current measurement::0-500A and 0-1000A

4.2 Accuracy Display:F.S ±0.2% rdg ±1digit

4.3 Action Mode:double integral

5.Basic Configuration

Whole set of test instrument is made up of high-current short circuit contactor,remote control,volmeter,ammeter,etc.

6.Test Site

Conduct the test in seperate lab and open the viewing window to record voltage under short circuit and current data.

Product Specification

Working voltageAC 220V 50Hz-60Hz;
Stroke voltageAC 1kv/1.2-50μs(peak)1min
Measurable max voltage100V
DC reaction time≤5μs
Max short circuit current1000A
Internal resistance80±20mΩ
Movement timePick-up/Release ≯30ms
Movement Feature

Cold-state pick-up voltage ≯66%Us

Cold-state releasing voltage ≯30%Us,≮5%Us

Control chamber temp.:normaltemperature+10~70℃
Thermal chamber materialinterior:galvanized SUS#304,Exterior:painted steel plate
InsulationEfficient compression glass wool
Temp.control accuracy:0.1℃
Average Temperature:±2℃
Interior dimension:300*320*320mm
Service life:300,000times
Operation environment:temp.-10℃~100℃ humidity10~90% no condensation

Meet New International Standard

1.External short circuit under normal temperature.

Fully charge the bettery according to specified test methods.Put it under 20℃±5.When battery’s temperature reaches 20℃±5,Place for 30mins,then connect the opposite and negative pole with wire and ensure all external resistance are 80mΩ±20mΩ.Monitor changes of bettery temperature.Finish the test when one of these two circumstances emerges:

a)Temperature drop 20% of the peak

b)24h connection

Battery qualified without fire and explosion.Less than 150℃

Note:Temperature coefficient of wire resistivity should be less than 5x10¯³℃¯¹,such as constantan wire.

2.High Temperature External Short Circuit

Fully charge the bettery according to specified test methods.Put it under 55℃±5.When batterys temperature reaches 55℃±5,Place for 30mins,then connect the opposite and negative pole with wire and ensure all external resistance are 80mΩ±20mΩ.Monitor changes of bettery temperature.Finish the test when one of these two circumstances emerges:

a)Temperature drop 20% of the peak

b)24h connection

Battery qualified without fire and explosion.Less than 150℃

3.Short Circuit Function under Short Circuit Protection

Conduct a 500-cycle test in order with sample

a)The opposite and negative pole in short circuit group and output terminal in protection circuit.

b)Place it for 1min after protection device works.

Total external resistance is 80mΩ±20mΩ in short circuit.

Device should work in each cycle.
